WHAT WE DO?
Slider

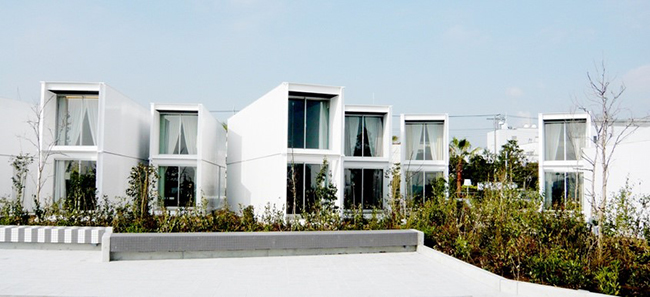

LIFESBOX is an Engineering Group with twenty years experience in consulting, designing, and manufacturing quality prefabricated modular building; Home, Hotel, Office, Convenience Store and Serviced Apartment.
Prefabricate modular home is manufactured in Thailand and delivered worldwide in standard 40’ , 20’ containers or over size of containers. LIFESBOX supports worldwide customers with world class products

• Natural disaster proof such as; Typhoons & earthquakes.
• Very durable, termite-proof!
• Greenhouse effect proof
• Easy to transport, accepted worldwide.
• Very cost-effective
• Tailor-made design.
• Experienced engineering consultation and full support in every
aspect of design.

MODULAR DESIGN

LIFESBOX has been designed and calculated about building construction to be engineering process and also specific the size of using area to be matched with the construction law of that country. And it also includes the raw material that we used for producing must be the material that does not have the dangerous component that can harmful to human being health and environment. (Non asbestos, Non formaldehyde).

SPECIFICATION

LIFESBOX The building construction is made of steel Grade SS 400, S275JR and A36 The floor is made of PC Concrete Density 2,400 Kg/M3 the wall type is Light weight concrete Density 950 Kg/ M3 or Magnesium oxide density 1,000 Kg /M3 or Plaster board Density 900 Kg/M3. The ceiling made of Plaster board and roof made of metal sheet or fiber cement board attached with FRP. Waterproof.

PLUMBING SYSTEM

LIFESBOX Hot and cold pipe use PEX Pipe or PPR. Pipe and drain pipe use uPVC. Following BS, ASTM, AS/NZ and JIS .
The plumbing system must be tested under the test pressure 10-12 Bar.

Slider



DELIVERY AND TRANSPORTATION
Slider
THE DELIVERY PROCESS IS AS FOLLOWS :

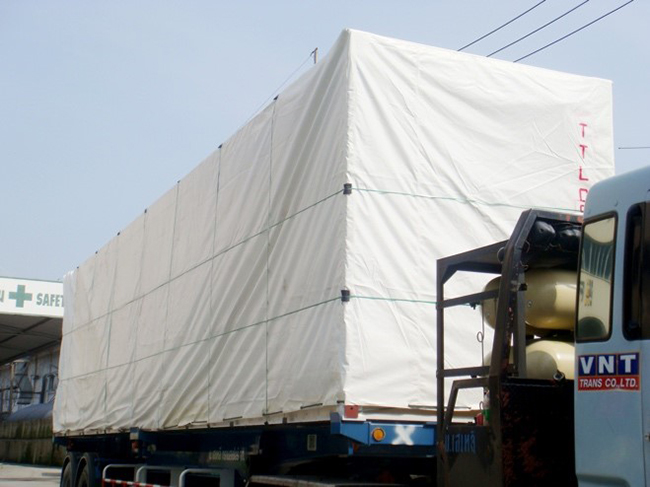

1. Delivery from LifesBOX factories to Laem Chabang port,
Sriracha district ,Chonburi Province Thailand; via standard trailer that is used for delivering 40’ and 20’ containers worldwide.
Note : From LifesBOX factories to Laem Chabang port approximated 25 KM.

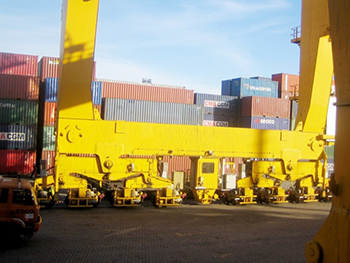

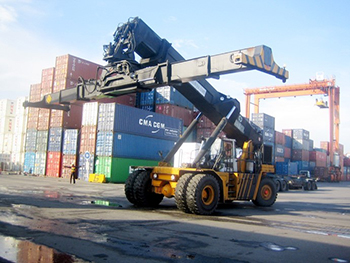

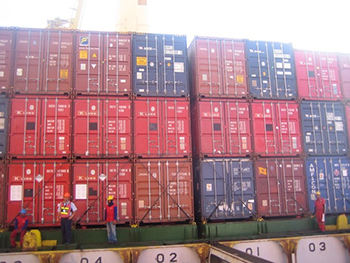

2. Delivery from Laem Chabang port to the host port in
each country by cargo vessel; LifesBOX hotel will be placed in secure cargo (Shipping fees will be applicable and according to the specific vessel)

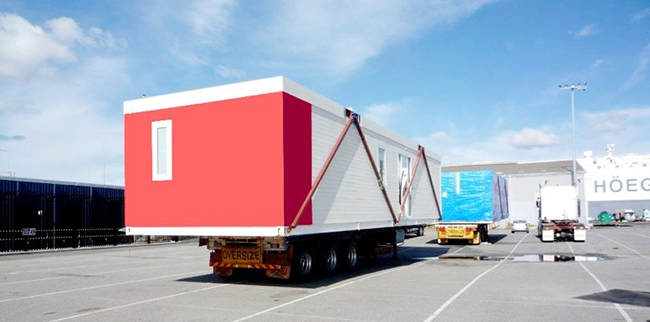

3. Delivery from host port to client’s site by trailer from the

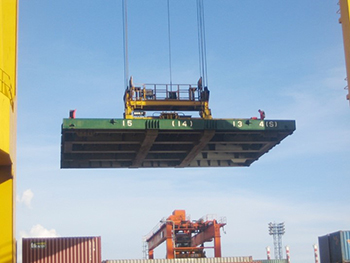

delivery process it can be easily noticed that during the transportation of a LifesBOX Modular Building there are many steps. Each step re-quires the building to be hoisted and lowered many times, and thus requires industrial lifting equipment suitable for the purpose. This in-turn requires that the structure is sturdy enough to deal with the strain and is actually much stronger than conventional buildings all over the world.

In most instances, your modular home will be initially transported from LifesBOX factories to the nearest sea port. At the port LifesBOX engineers will complete a full checklist to make sure your modular home arrives undamaged. If any problem should occur while your modular home is being transported from LifesBOX factories to the port, it will be returned immediately to the factory for repair before shipping.
If any damage occurs while the modular home is being trans-ported to your site, the company transporting your modular home is usually responsible with the conditions stipulated under the insurance of the shipping method you have selected. However, it is advisable to check for damage as soon as your modular home arrives. If you find any damage, kindly contact the logistics company immediately; obviously we are happy to provide any documentation necessary to support your claim in the event of damage.

Slider


PREFABRICATED BUILDING PROJECTS
Slider

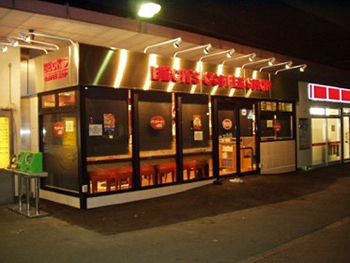

BECK’S COFFEE

LIFESBOX can offer a number of standard-sized prefabricated modular buildings, and they can be seen in the project refer-ence. But, these are only examples. Our
experience tells us that each specific projct requires a specific solution. This is the unique skill that LifesBOX can offer. Our household engineers and designers can develop your ideas, concepts and dreams to create solutions for any situation.


BECK’S COFFEE Prefabricated Coffee shop is a building assembled from a series of volumetric steel modules, linked together to form a complete structure.
The modules, which are prefabricated and finished (or partially finished) off-site, under factory conditions, and then transported to the construction site and mounted on to pre-prepared foundations.

PREFABRICATED MODULAR CHARACTERISTICS

● Unit contains approximately 75 M² utilizable space. Transportation via COC 40’ containers or multiples thereof.
● Steel construction.
● Column size: 100x100x4t. Grade SS400
● The roof construction is 4.5 mm steel, with fabricated metal sheeting and insulation.
● Factory installed plasterboard, fixed furniture, floor tiles, bathroom fully finished, electrical, plumbing and door / window completed from factory.

PREFAB ELEMENTS INSTALLED AT CUSTOMER’S SITE:

● Part and component such as : roof set, loose furniture, signboard, All put inside the COC 40’ containers. Therefore, to save time, cost and breakage these component cannot be installed at the factory and must be fixed by the client at site.

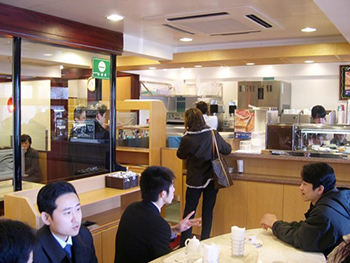

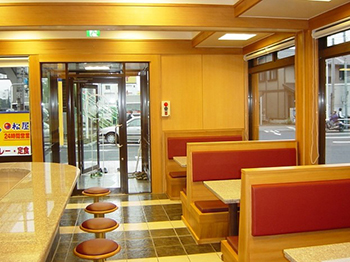

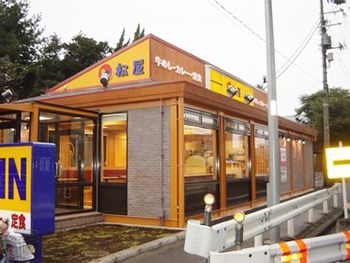

MATSUYA FOOD

LIFESBOX can offer a number of standard- sized prefabricated modular buildings,and they can be seen in the project refer-ence. But, these are only examples. Our experience tells us that each specific project requires a specific solution. This is the unique skill that LifesBOX can offer. Our household engineers and designers can develop your ideas, concepts and dreams to create solutions for any situation.


MATSUYA FOOD: is a building assembled from a series of volumetric steel modules, linked together to form a complete structure.


The modules, which are prefabricated and finished (or partially finished) off-site, under factory conditions, and then transported to the construction site and mounted on to pre-prepared foundations.

PREFABRICATED MODULAR CHARACTERISTICS

● Unit contains approximately 95 M² utilizable space. Transportation via 6-SOC.HC. 20’ containers size and part component with 40’ cargo container.
● Steel construction.
● Column size: H-150x150x7x10 Grade SS400
● The roof construction is 4.5 mm steel frame, with fabricated single roof (Asphalt Shingle) Insulation with glass-wool R=2.5
● Factory installed plasterboard, fixed furniture, external tiles, floor tiles, bathroom fully finished, electrical, plumbing and door / window completed
from the factory.

PREFAB ELEMENTS INSTALLED AT CUSTOMER’S SITE:

● Part and component such as : roof set, air-lock loose furniture, signboard, All put inside the COC 40’ containers. Therefore, to save time, cost and breakage these components cannot be installed at the factory and must be fixed by the client at site.

Slider



MODULAR HOTEL, INSTALLATION, WEATHER AND LIMITATION
Slider

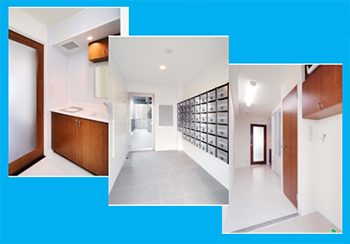

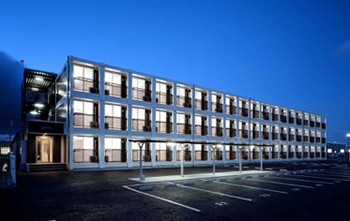

HOTELS

LIFESBOX can offer a number of standard-sized prefabricated modular buildings,and they can be seen in the project refer-ence. But, these are only examples. Our experience tells us that each specific project requires a specific solution. This is the unique skill that LifesBOX can offer. Our household engineers and designers can develop your ideas, concepts and dreams to create solutions for any situation.

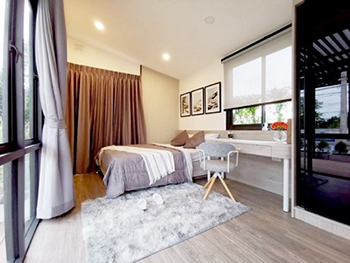

HOTELS: the number of units stacked in modular hotel, rooms are decorated with high quality furniture and standard elements is dependent on tailor-made request and can be adjusted to accommodate additional personal side by side.


A concept solution for management housing as they provide private bathrooms and single or double occupancy per bedroom. They are manufactured in Thailand and on-site in-stalled at Japan.

PREFABRICATED MODULAR BUILDING :

● Construction made of metal H Beam structure.

● Size of modular is SOC 40’ HC containers or WLH 2438x12192x2896mm. will be able for worldwide transport, can be delivered easily and save on cost of shipping, port handling & In-land transport.

● Exterior wall used light-weight concrete Density 950 Kg/ M³ finished with ceramic tiles. Interior walls utilized 8mm cement board (asbestos free) attached with plaster board 9mm. and were finished with plain wall paper.
● Floor concrete 90 mm can support loads up to 300 Kg/M² finished with ceramic tiles.
● Ceiling plasterboard 9 mm finished with “Painted”

● Metal roof sheet t=0.43bmt

● Wall and ceiling Insulation : glass wool R=2.0 or depend on requirement.

● Plumbing and electrical systems : All complete from our factory, follow BS, JIS, ASTM, AS/NZ.

● Fixed furniture : Particle board grade E1, E0 or super E0 attached with HP laminated.

INSTALLATION OF MODULAR
MANUFACTURED HOME

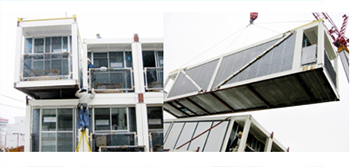

ONSITE INSTALLATION

To install the LifesBOX product should use the mobile crane 75 tons or 100 tons. Depending on the site condition and Manpower included : The supervisor, labor to do installation about 5-6 persons. The equipment to do installation has for Bolt & Nut M16 and M20, camera height checking, Scaffolding for detail outside building.

WEATHER

For the differentiated of weather of each country, we have to select the material to match with the weather of each area. Thus, the clients are important to make a decision but what the clients have focus is the data and the right weather such as data of the heat, humidity, win, storm, rain, snow and etc. To protect the impact from the bad weather. And to make the nice living condition is the most important thing that LifesBOX designer’s team really focus on it. Therefore, we hope that we will have a cooperation from clients to offer the right data that will be very useful to improve the quality and so on.

LIFESBOX LIMITATION

From the shape and qualification of module have the square shape so, it has a limitation about Design. And it can be divided into the topic as follows.

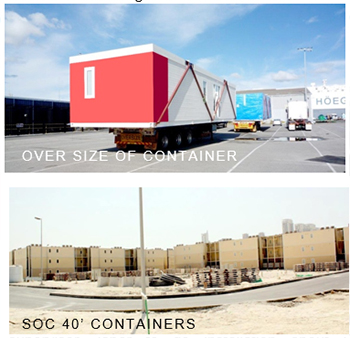

The economical of scale container size has the width 8’ and the length which has only 2 sizes. There are 8’x20’ LifesBOX product size is WLH 2438x6040x2896 and 8’x40’ LifesBOX product size is WLH 2438x12192x2896 The limitation of the height of the building. At the present time, LifesBOX product can be stackable maximum 8th levels.


The over size of container width maximum 4200mm. and the length maximum 14400mm.
